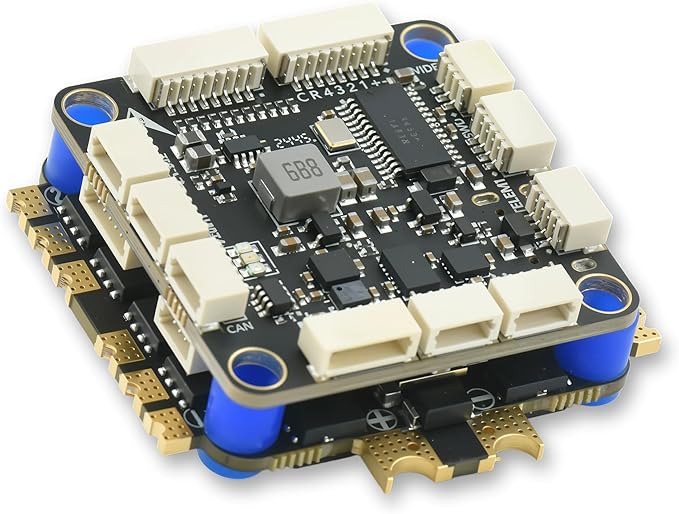

Product Overview
The AERO SELFIE H743 Flight Controller with 60A 8 bit ESC 30x30 Stack: Supports 2-6S LiPo is a General product. It features high-performance flight controller & esc combo: features the aero selfie.

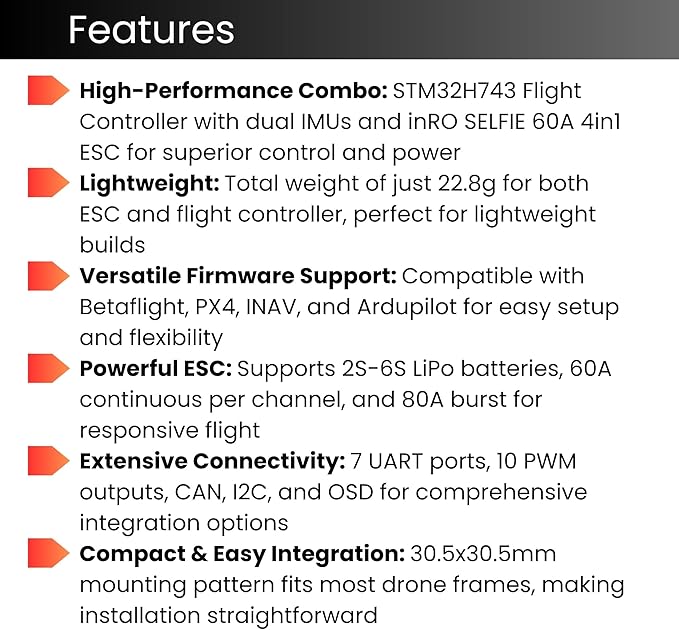

Key Features

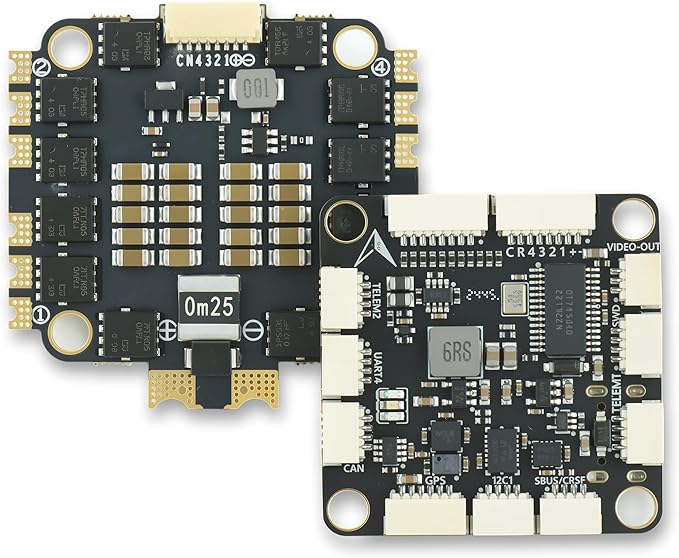

- High-Performance Flight Controller & ESC Combo: Features the AERO SELFIE H743 Flight Controller with an STM32H743 processor (480MHz) and dual IMUs (BMI088/BMI270), alongside the AERO SELFIE 4IN1 60A ESC for superior motor control, offering a combination for lightweight builds.
- Easy to Configure & Versatile Firmware Support: Compatible with Betaflight, PX4, INAV, and Ardupilot, this stack offers quick configuration options, ensuring ease of setup for both beginners and professionals.
- Powerful ESC Performance: The AERO SELFIE 60A 4IN1 ESC supports 2S-6S LiPo batteries, provides a continuous 60A per channel, and delivers burst current of over 80A, ensuring optimal power, responsiveness, and stalling protection for high-performance drones.

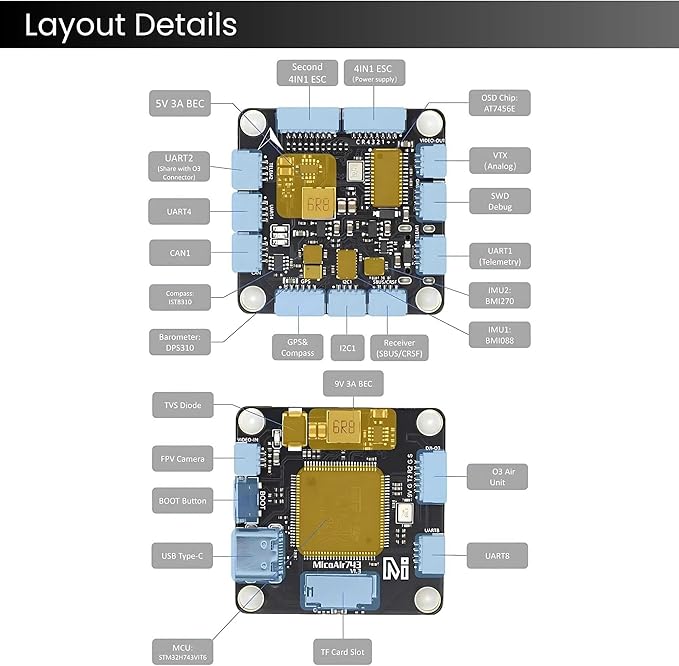

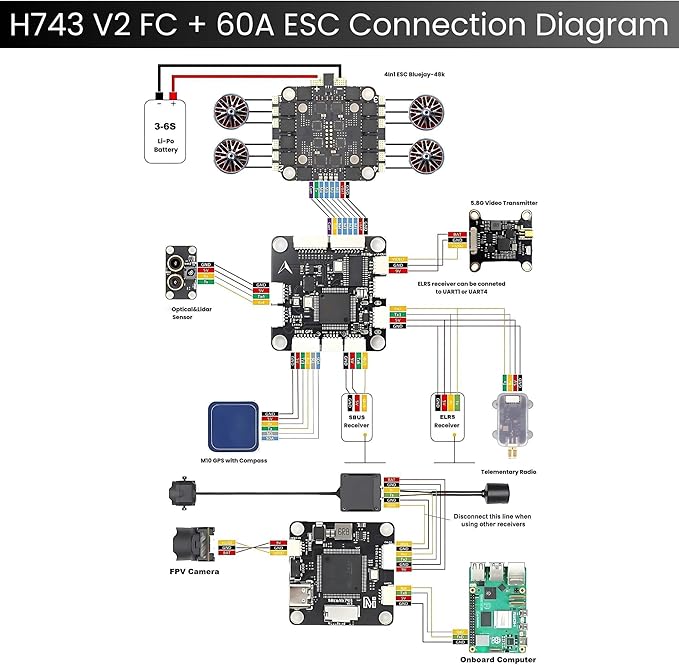

- Comprehensive Connectivity & Expansion: The H743 Flight Controller includes 7 UART ports, 10 PWM outputs, CAN, I2C, and OSD support, offering vast expansion potential for additional sensors, telemetry, or peripherals like GPS and cameras.

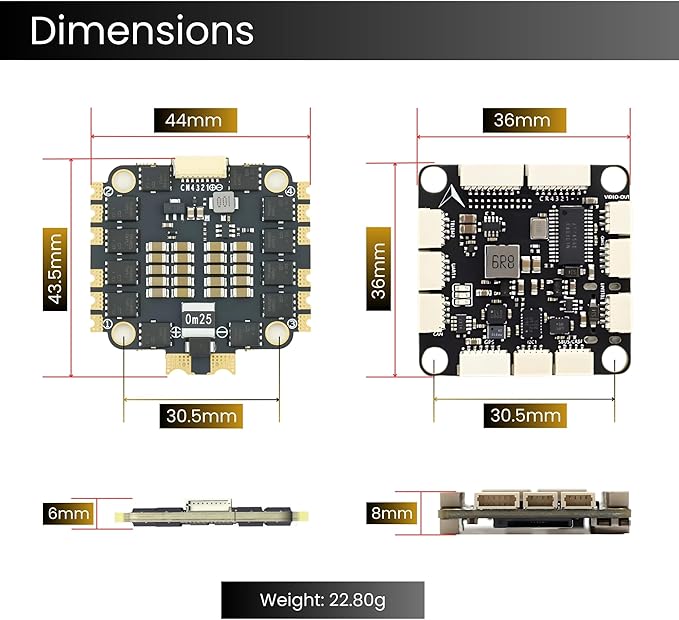

- Compact & Lightweight Design for Easy Integration: With a 30.5x30.5mm mounting pattern, the stack fits a wide variety of drone frames, while the lightweight (total weight: 22.8g for both the ESC and Flight Controller) and compact form factor ensures easy installation and efficient space management.
Why Choose the AERO SELFIE H743 Flight Controller with 60A 8 bit ESC 30x30 Stack: Supports 2-6S LiPo
The AERO SELFIE H743 Flight Controller with 60A 8 bit ESC 30x30 Stack: Supports 2-6S LiPo offers high-performance flight controller & esc combo: features the and easy to configure & versatile firmware support: compatible. These features make the AERO SELFIE H743 Flight Controller with 60A 8 bit ESC 30x30 Stack: Supports 2-6S LiPo a strong option in the General category.
Best For
The AERO SELFIE H743 Flight Controller with 60A 8 bit ESC 30x30 Stack: Supports 2-6S LiPo is best suited for: Advanced Connectivity and Versatile Firmware Support.
Quick Summary
The AERO SELFIE H743 Flight Controller with 60A 8 bit ESC 30x30 Stack: Supports 2-6S LiPo is a General product by AEROSELFIE. Brand: AERO SELFIE. Model Name: H743 + 60A 8 bit ESC Stack. Special Feature: Advanced Connectivity and Versatile Firmware Support. Age Range (Description): Youth, Adult. Included Components: 35V Fixed Capacitor x 1, 8PIN 1.0mm Cable 80mm Length x 1 , 8PIN 1.0mm Cable 30mm Length x 1, GPS 6 pin Cable 150mm in Length x 1, Nuts, Grommets, Screws and O rings, XT60 Male Power Cable 150mm Length x 1 35V Fixed Capacitor x 1, 8PIN 1.0mm Cable 80mm Length x 1 , 8PIN 1.0mm Cable 30mm Length x 1, GPS 6 pin Cable 150mm in Length x 1, Nuts, Grommets, Screws and O rings, XT60 Male Power Cable 150mm Length x 1. Price: $140.09.
Product Specifications
| Specification | Details |
|---|---|
| Brand | AERO SELFIE |
| Model Name | H743 + 60A 8 bit ESC Stack |
| Special Feature | Advanced Connectivity and Versatile Firmware Support |
| Age Range (Description) | Youth, Adult |

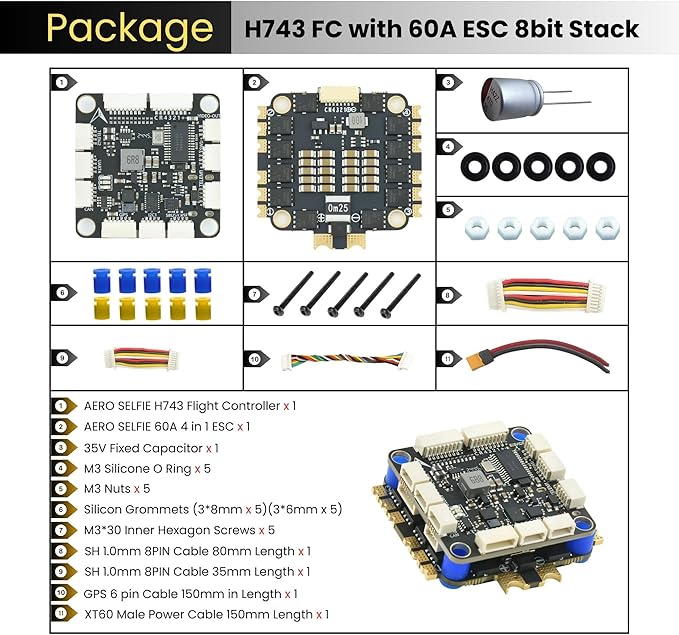

| Included Components | 35V Fixed Capacitor x 1, 8PIN 1.0mm Cable 80mm Length x 1 , 8PIN 1.0mm Cable 30mm Length x 1, GPS 6 pin Cable 150mm in Length x 1, Nuts, Grommets, Screws and O rings, XT60 Male Power Cable 150mm Length x 1 35V Fixed Capacitor x 1, 8PIN 1.0mm Cable 80mm Length x 1 , 8PIN 1.0mm Cable 30mm Length x 1, GPS 6 pin Cable 150mm in Length x 1, Nuts, Grommets, Screws and O rings, XT60 Male Power Cable 150mm Length x 1 |
| Video Capture Format | MP4 |
| Control Type | Remote Control |
| Material | Carbon Fiber |
| Are Batteries Included | No |
| Remote Control Included? | No |
