Product Overview
The Chunzehui F-1011 6-Position 45A Power Pole Distribution Block Module is a Connecting Blocks product by Chunzehui. It features connections: 6 standard 45a power pole connectors. can compatible 15a,.
Key Features
- Connections: 6 Standard 45A power pole connectors. Can compatible 15A, 30A or 45A power pole connectors.
- Maximum Voltag: 60VDC.
- Maximum Current: 45A.
- Enclosure: High quality aluminum enclosure,thickness 1.5mm/0.06".

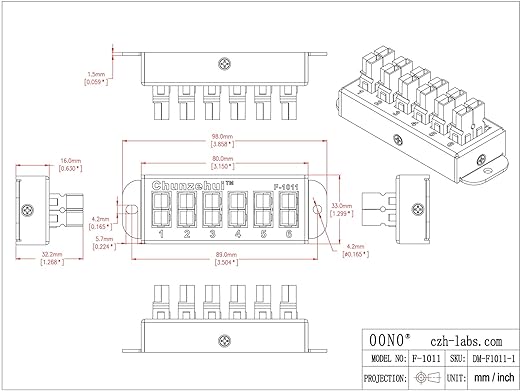

- Overall Dimensions(maximum, w/o cables): L 98mm x W 33mm x H 32.6mm / 3.86" x 1.30" x 1.28"
Why Choose the Chunzehui F-1011 6-Position 45A Power Pole Distribution Block Module
The Chunzehui F-1011 6-Position 45A Power Pole Distribution Block Module offers connections: 6 standard 45a power pole connectors. can and maximum voltag: 60vdc.. These features make the Chunzehui F-1011 6-Position 45A Power Pole Distribution Block Module a strong option in the Connecting Blocks category.
Best For
The Chunzehui F-1011 6-Position 45A Power Pole Distribution Block Module is best suited for everyday connecting blocks needs.
Quick Summary
The Chunzehui F-1011 6-Position 45A Power Pole Distribution Block Module is a Connecting Blocks product by Chunzehui. Current Rating: 45 Amps. Connector Type: Screw. Number Of Contacts: 6. Mounting Type: Screw Mount. Material: Aluminum. Price: $42.88.
Product Specifications
| Specification | Details |
|---|---|
| Current Rating | 45 Amps |
| Connector Type | Screw |
| Number Of Contacts | 6 |
| Mounting Type | Screw Mount |
| Material | Aluminum |
| Color | black |
| Brand | Chunzehui |
| Voltage | 60 Volts |
| Number Of Poles | 6 |
| Product Dimensions | 3.78"W x 1.28"H |
