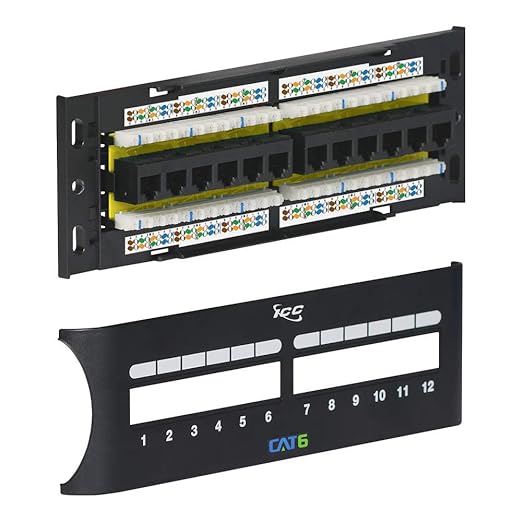

Product Overview
The ICC CAT6 Patch Panel is a Wiring & Connecting product. It features wall-mounted cat6 component-rated fixed patch panel with front access to.
Key Features
- Wall-mounted CAT6 component-rated fixed patch panel with front access to RJ-45 ports and 110-Type connectors, which allow quick moves, adds, and changes (MACs), delivering excellent performance for data networks requiring maximum speed and bandwidth. Backward compatible with Cat5e and Cat5 cabling.

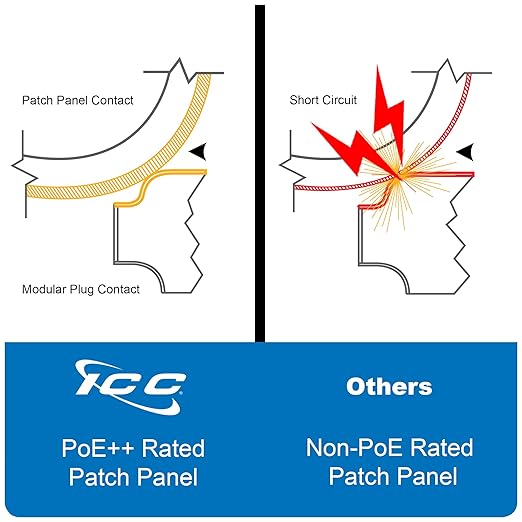

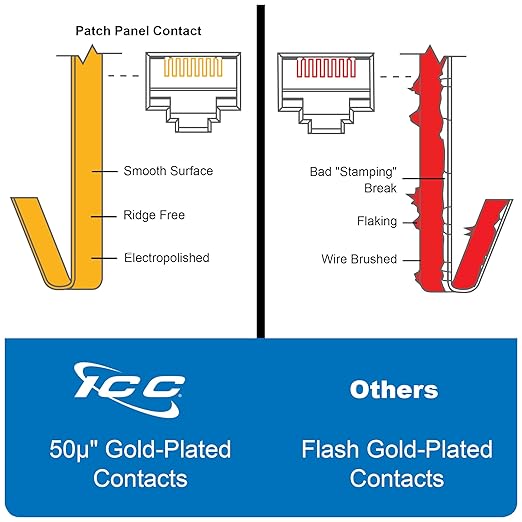

- Designed for Gigabit Ethernet, ensuring your network is future-proof. Ideal for Gigabit Ethernet switches. Gold-plated contacts ensure a correction-free connection with 50 micro-inches of gold over 100 micro-inches of nickel. Supports Power over Ethernet (PoE++) up to 100W.

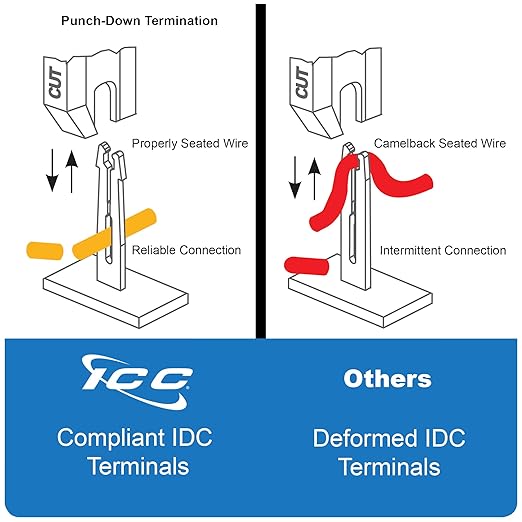

- Features 110 IDC termination to reduce installation time. The 110 IDC on the rear can be re-terminated over 100 times. Numbered ports and color-coded TIA-568A and TIA-568B wiring diagrams provide quick and easy reference.
- Jack housing constructed from high-impact, flame-retardant plastic (UL 94V-0 rated) and durable phosphor bronze spring wire. Phosphor bronze alloy 110 connectors with 100 micro-inches of nickel alloy. RJ45 jack can accept over 750 plug to jack insertion cycles. UL listed for fire safety compliance.

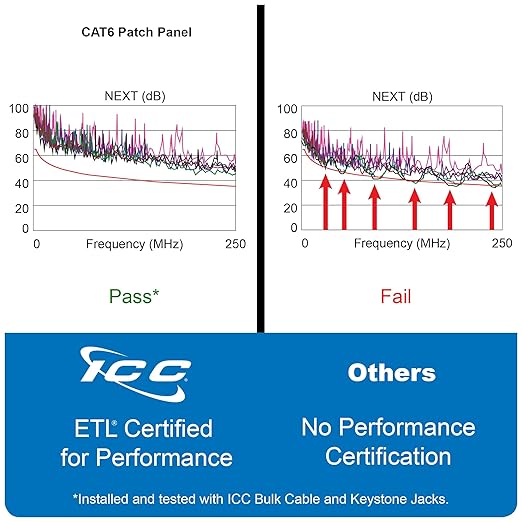

- Engineered to exceed ANSI/TIA-568 Category 6 connecting hardware requirements with enhanced crosstalk cancellation, reducing return loss and improving overall network performance.
Why Choose the ICC CAT6 Patch Panel
The ICC CAT6 Patch Panel offers wall-mounted cat6 component-rated fixed patch panel with front and designed for gigabit ethernet, ensuring your network is. These features make the ICC CAT6 Patch Panel a strong option in the Wiring & Connecting category.
Best For
The ICC CAT6 Patch Panel is best suited for: Gigabit Ethernet.
Quick Summary
The ICC CAT6 Patch Panel is a Wiring & Connecting product by ICC. Connector Type: Rj45. Number Of Contacts: 96. Mounting Type: Wall Mount. Material: Copper. Color: 12-Port Wall Mount Front IDC - Black. Price: $97.4.
Product Specifications
| Specification | Details |
|---|---|
| Connector Type | Rj45 |
| Number Of Contacts | 96 |
| Mounting Type | Wall Mount |
| Material | Copper |
| Color | 12-Port Wall Mount Front IDC - Black |
| Brand | ICC |
| Voltage | 48 Volts (DC) |
| Number Of Poles | 96 |
| Specification Met | Tia, Ul, Rohs |
