Product Overview

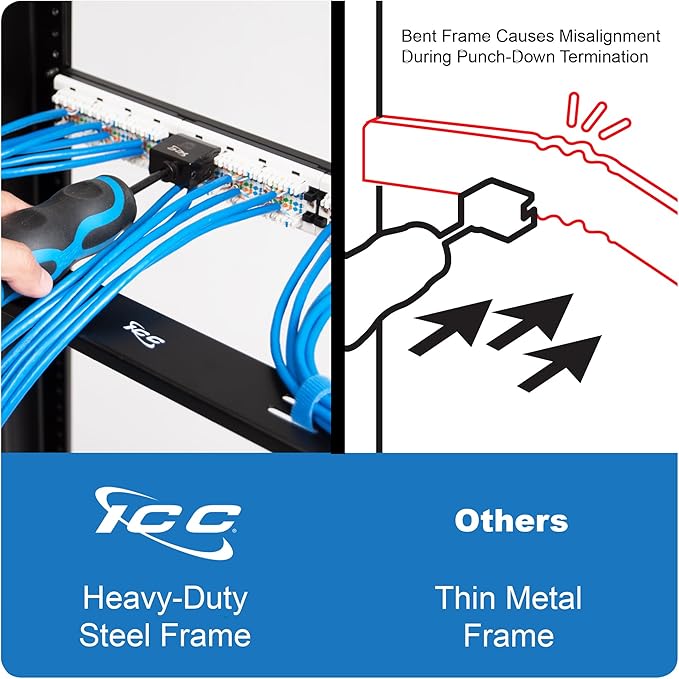

The ICC CAT6A Patch Panel is a Wiring & Connecting product. It features rack-mounted cat6a component-rated fixed patch panel made with 16-gauge cold-rolled.
Key Features
- Rack-mounted CAT6A component-rated fixed patch panel made with 16-gauge cold-rolled steel (16 GA CRS), delivering excellent performance for data networks requiring maximum speed and bandwidth. Backwards compatible with Cat6 and Cat5e cabling.

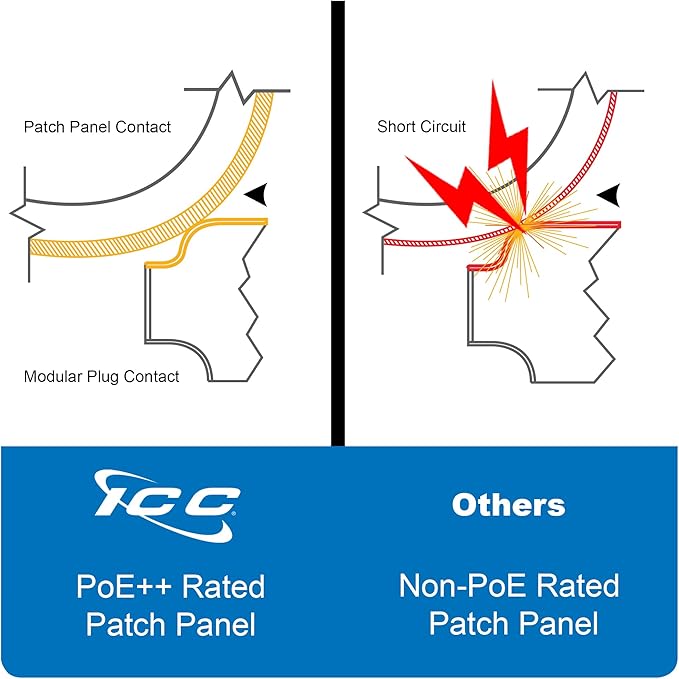

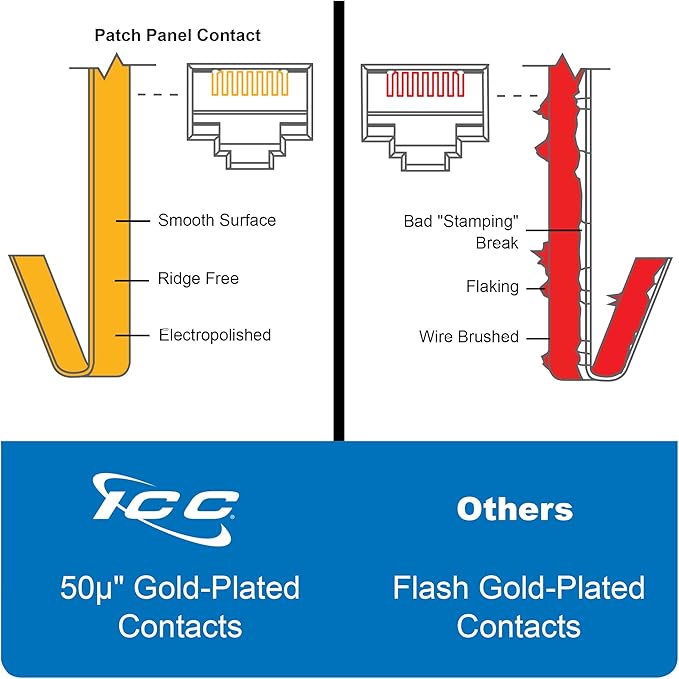

- Designed for 10 Gigabit Ethernet, ensuring your network is future-proof. Ideal for 10 Gigabit Ethernet switches. Gold-plated contacts ensure a correction-free connection with 50 micro-inches of gold over 100 micro-inches of nickel. Supports Power over Ethernet (PoE++) up to 100W.

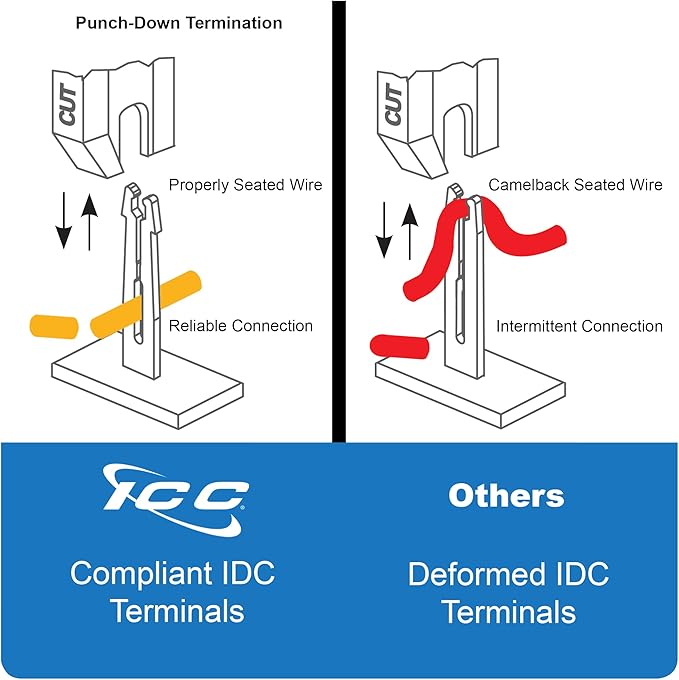

- Featuring 110 IDC connections on the rear, this design reduces termination time and allows for re-termination over 100 times. Numbered ports and color-coded TIA-568A and TIA-568B wiring diagrams provide quick and easy reference. It fits standard 19" EIA rack mount width with a 1U (1.75") standard height.
- Jack housing constructed from high-impact, flame-retardant plastic (UL 94V-0 rated) and durable phosphor bronze spring wire. Phosphor bronze alloy 110 connectors with 100 micro-inches of nickel alloy. RJ45 jack can accept over 750 plug to jack insertion cycles. UL listed for fire safety compliance.

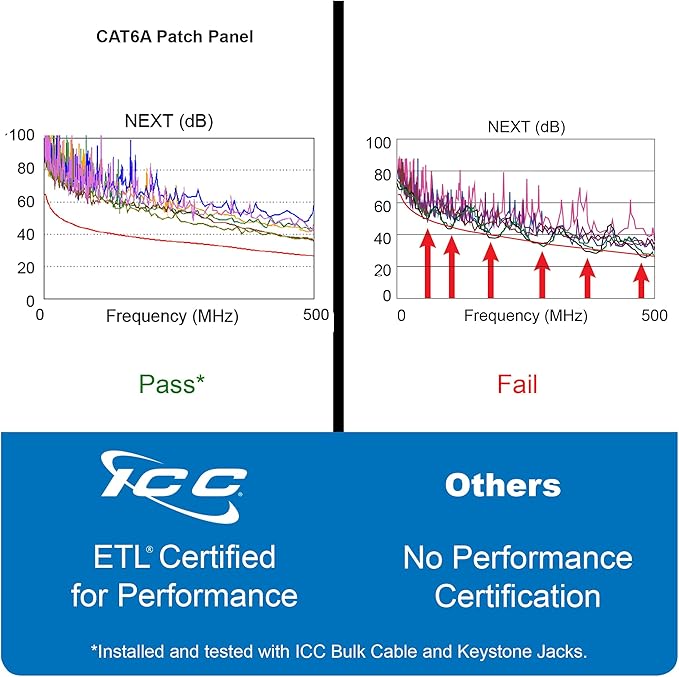

- The 110-Type IDC connections on the rear are positioned vertically to effectively reduce potential alien crosstalk. This design is engineered to exceed ANSI/TIA-568 Category 6A connecting hardware requirements, providing enhanced crosstalk cancellation, reducing return loss, and improving overall network performance.
Why Choose the ICC CAT6A Patch Panel
The ICC CAT6A Patch Panel offers rack-mounted cat6a component-rated fixed patch panel made with and designed for 10 gigabit ethernet, ensuring your network. These features make the ICC CAT6A Patch Panel a strong option in the Wiring & Connecting category.
Best For
The ICC CAT6A Patch Panel is best suited for: PoE++ Rated to Power Devices, 10 Gigabit Ethernet.
Quick Summary
The ICC CAT6A Patch Panel is a Wiring & Connecting product by ICC. Brand: ICC. Connector Type: RJ45. Cable Type: Component, Ethernet. Compatible Devices: Ethernet Devices, Security Cameras. Special Feature: PoE++ Rated to Power Devices. Price: $186.43.
Product Specifications
| Specification | Details |
|---|---|
| Brand | ICC |
| Connector Type | RJ45 |
| Cable Type | Component, Ethernet |
| Compatible Devices | Ethernet Devices, Security Cameras |
| Special Feature | PoE++ Rated to Power Devices |
