Product Overview
The Recoil S2P-516 Busbar Dual 5/16” Studs and #8 Screw Terminal Power Distribution Block with Ring Terminals Pair Red & Black is a Connecting Blocks product. It features two connections with 5/16" stainless steel studs and 1 x.
Key Features

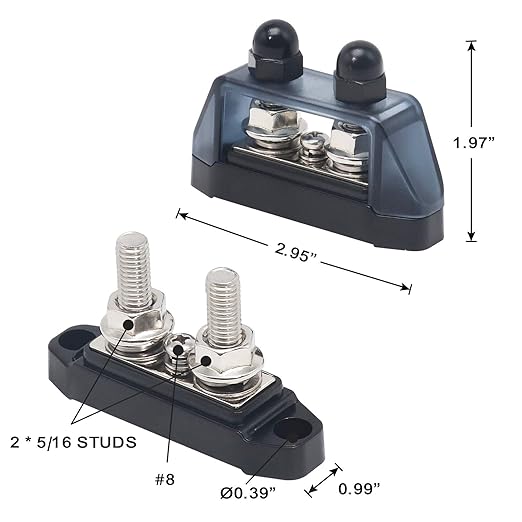

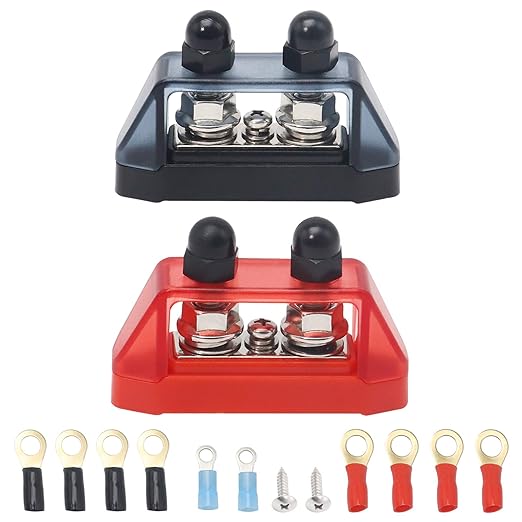

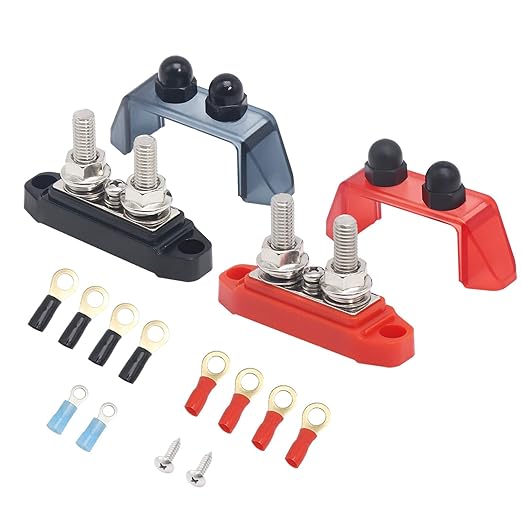

- Two connections with 5/16" stainless steel studs and 1 x #8 stainless steel screws. Comes with 8AWG 5/16” ring terminals, #8 insulated ring terminals and stainless steel screws
- Reinforced Polycarbonate cover attaches with nylon nuts to protect against accidental short circuits

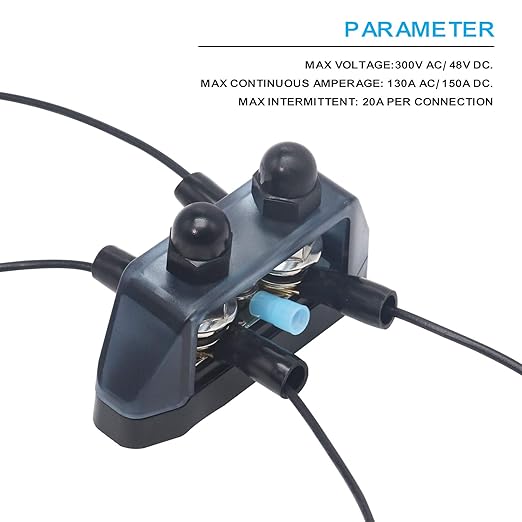

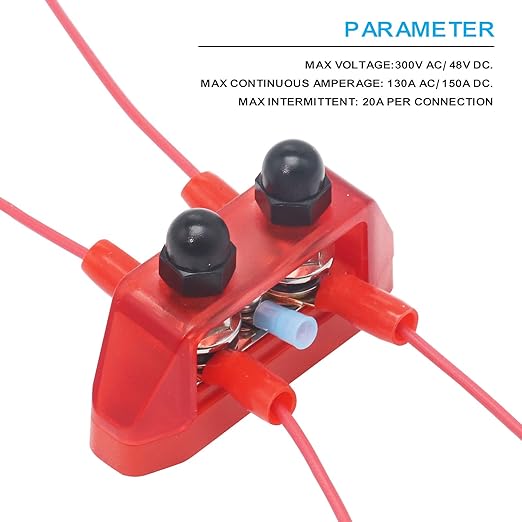

- Max voltage:300V AC/ 48V DC. Max continuous amperage: 130A AC/150A DC. Max intermittent: 20A per connection

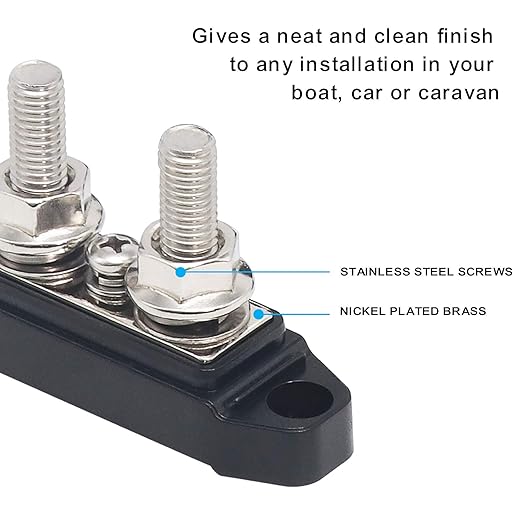

- Nickle plated brass plate for low resistance, maximum conductivity and protect against corrosion. Made from robust Polycarbonate plastic for excellent strength and durability in even the harshest of environments
- Gives a neat and clean finish to any installation in your boat, car or caravan
Why Choose the Recoil S2P-516 Busbar Dual 5/16” Studs and #8 Screw Terminal Power Distribution Block with Ring Terminals Pair Red & Black
The Recoil S2P-516 Busbar Dual 5/16” Studs and #8 Screw Terminal Power Distribution Block with Ring Terminals Pair Red & Black offers two connections with 5/16" stainless steel studs and and reinforced polycarbonate cover attaches with nylon nuts to. These features make the Recoil S2P-516 Busbar Dual 5/16” Studs and #8 Screw Terminal Power Distribution Block with Ring Terminals Pair Red & Black a strong option in the Connecting Blocks category.
Best For
The Recoil S2P-516 Busbar Dual 5/16” Studs and #8 Screw Terminal Power Distribution Block with Ring Terminals Pair Red & Black is best suited for everyday connecting blocks needs.
Quick Summary
The Recoil S2P-516 Busbar Dual 5/16” Studs and #8 Screw Terminal Power Distribution Block with Ring Terminals Pair Red & Black is a Connecting Blocks product by Recoil. Current Rating: 20 Amps. Item Pitch: 0.31 Inches. Gauge: 8.0. Connector Type: Screw. Number Of Contacts: 2. Price: $28.03.
Product Specifications
| Specification | Details |
|---|---|
| Current Rating | 20 Amps |
| Item Pitch | 0.31 Inches |
| Gauge | 8.0 |
| Connector Type | Screw |
| Number Of Contacts | 2 |
| Mounting Type | Flush Mount |
| Material | Brass, Plastic, Polycarbonate (PC), Stainless Steel |
| Brand | RECOIL |
| Voltage | 300 Volts |
| Number Of Poles | 2 |
